WGP Ethrx P6 POE UPS 30W Output USB 5V 9V 12V 24V or 48V DC POE MIni UPS for Wifi Router

Type:WGP Ethrx P6

Product Features:

The WGP Ethrx P6 is a compact PoE Uninterruptible Power Supply (UPS). 1. Multi-Voltage Independent Outputs: It supports simultaneous connections across four independent output channels: USB (5V), DC (9V + 12V), and PoE (freely adjustable between 24V and 48V). The USB, DC, and PoE modes can be utilized concurrently, offering flexible adaptability for various networking and security applications. 2. High-Energy Cells for Robust Endurance: It features two built-in 4400mAh 21700 lithium-ion cells with high energy density, providing a total capacity of 8800mAh. With a maximum output power of 30W, the unit boasts a cycle life of over 600 charge-discharge cycles. 3. Compact and Slimline Design: Measuring 105 × 105 × 27.5 mm with a net weight of 0.302 kg, its square, slim, and lightweight profile allows for easy placement—whether positioned next to equipment, inside a network cabinet, or mounted directly onto a wall. 4. Intelligent Cooling + Removable Battery for Hassle-Free Maintenance: Equipped with a ventilated cooling structure, a removable battery pack, and rear-mounted wall-hanging slots, this unit serves as a reliable, long-term backup power solution for devices such as routers, optical modems, and security cameras.


Product Detail

Downloads

Specification

Model WGP Ethrx P6
Battery Type 21700 li-ion
Input Voltage AC 110-240V
Output Power (Max.) 30W
Output Ports DC 1 DC 2 USB POE(Freely switch)
Output Voltage DC 12V DC 9V USB 5V POE 24V/48V
Output Voltage & Current DC 12V  2.5A DC 9V  1A USB 5V 2A POE 24V 0.5A /48V 0.16A
Output Power 30W 9W 10W 12W/7.68W
Battery Capacity & QTY. 8800mAh(4400mAh*2)
Size Information 105 x 105 x 27.5mm
Net Weight (kg) 0.302kg
*Product specifications are subject to change without notice.

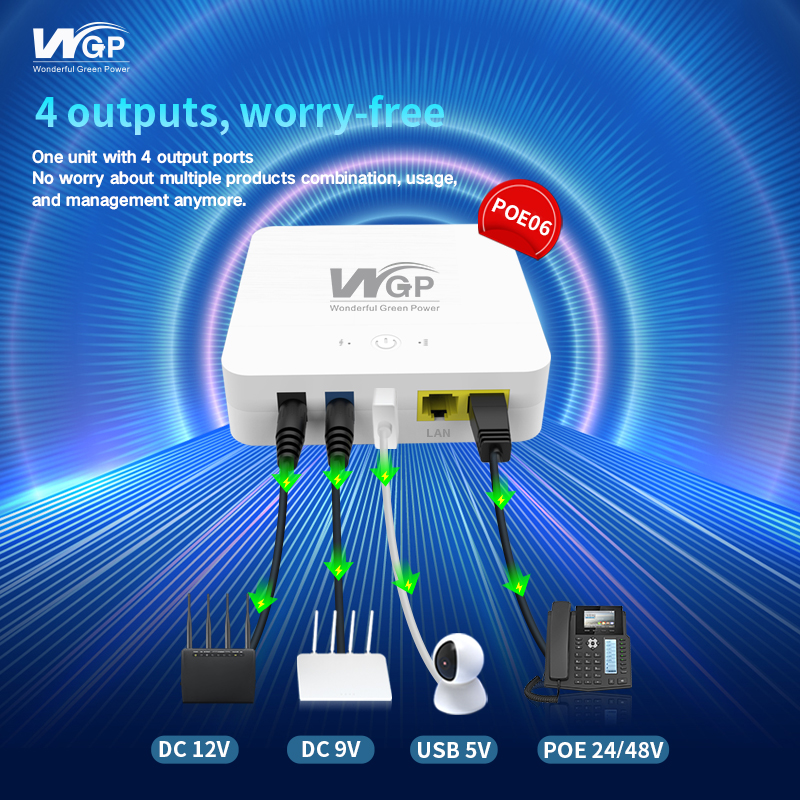

Four-in-One Device, Say Goodbye to Clutter:

✓ 4 Output Interfaces — DC 12V/9V, USB 5V, and POE 24/48V — compatible with routers, modems, cameras, IP phones, and more. Eliminate the need for multiple power adapters and simplify cable management.
✓ Multi-Device Compatibility — Supports a wide range of equipment, ensuring stable operation even for low-current 5V devices and full compatibility with routers under 2.5A.

POE06 MINI UPS (2)

Product Details

POE06 mini ups

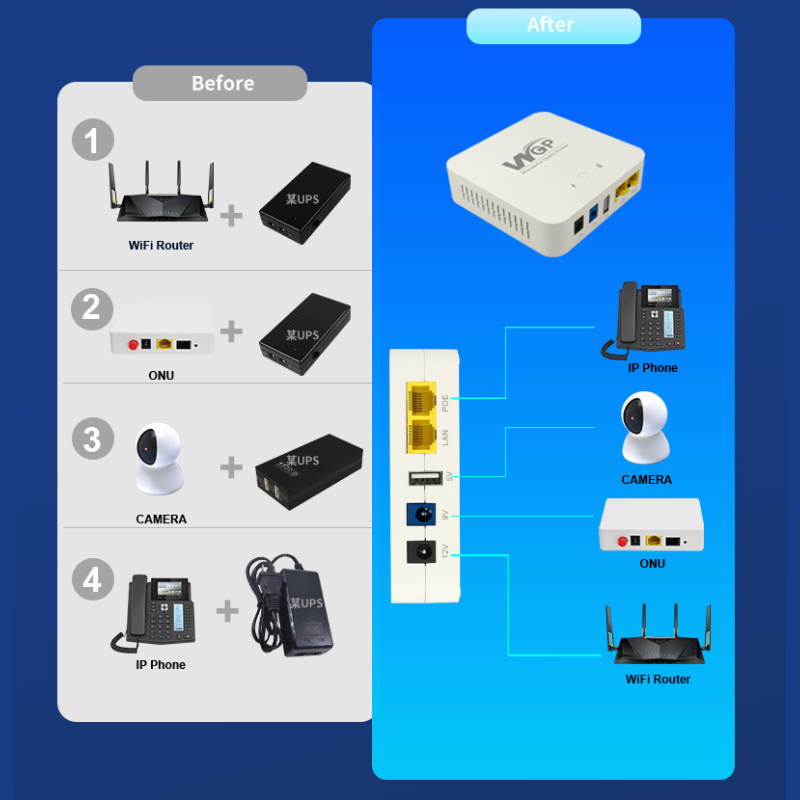

Save Power, Space, and Costs with Ease:

✓ Slash your expenses — 1 POE06 unit ≈ 4 standalone power adapters. More affordable, more energy-efficient.

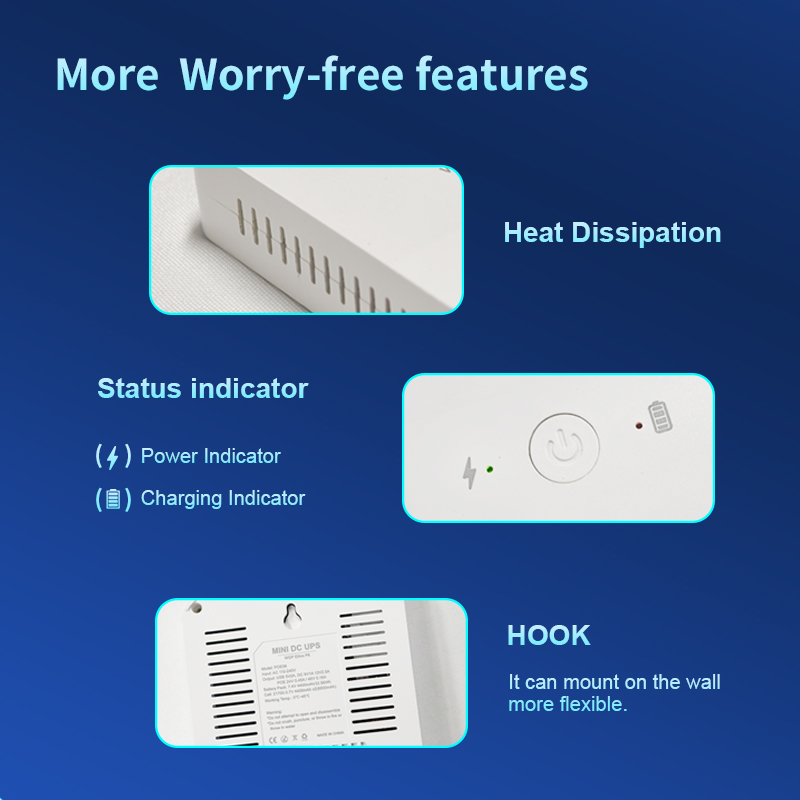

Reliable, Durable, and Safe:

✓ Smart Heat Dissipation — Features side vent cooling design for extended operation without overheating, prolonging device lifespan.
✓ Status Indicator — Displays real-time working/charging status, making power usage clear at a glance.
✓ Wall-Mountable Design — Saves desktop/wall space, neat and aesthetic. Ideal for homes, offices, and surveillance environments.

POE06 MINI UPS (1)

Application Scenario

POE 06 mini ups

Universal Compatibility, All-in-One Power Solution:

✓ Triple Output Ports — USB/DC/POE interfaces eliminate the need for multiple adapters, effortlessly powering a wide range of devices.
✓ Adjustable POE — Supports switchable 24V/48V PoE output for flexible compatibility with various network equipment.
