WGP Ethrx P6 POE UPS 30W Output USB 5V 9V 12V 24V or 48V DC POE MIni UPS for Wifi Router

Type:WGP Ethrx P6

Product Features:

The WGP Ethrx P6 is a compact PoE Uninterruptible Power Supply (UPS).

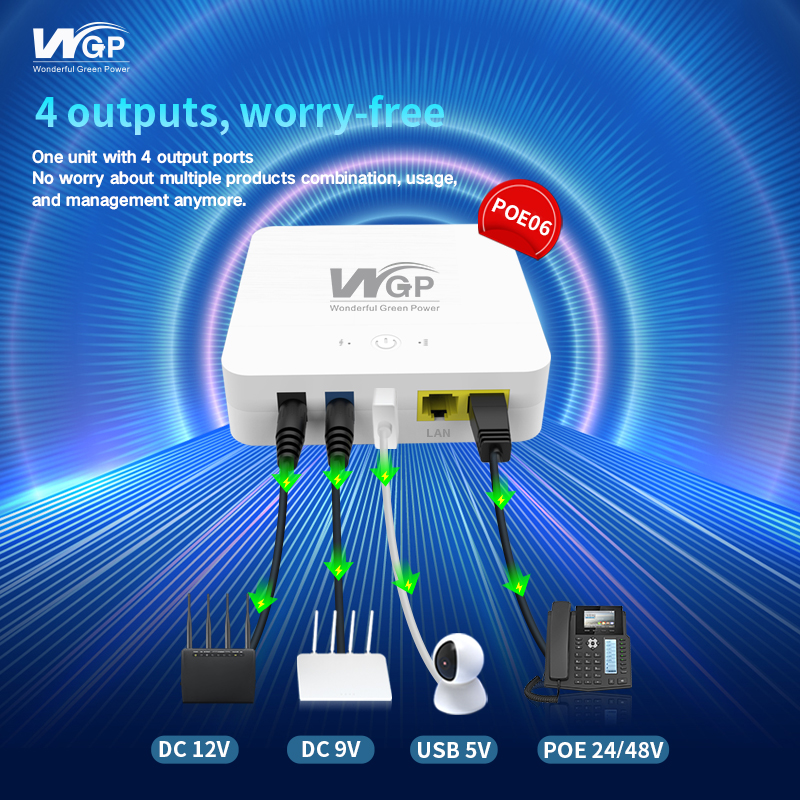

1. Multi-Voltage Independent Outputs:
It supports simultaneous connections across four independent output channels: USB (5V), DC (9V + 12V), and PoE (freely adjustable between 24V and 48V). The USB, DC, and PoE modes can be utilized concurrently, offering flexible adaptability for various networking and security applications.
2. High-Energy Cells for Robust Endurance:
It features two built-in 4400mAh 21700 lithium-ion cells with high energy density, providing a total capacity of 8800mAh. With a maximum output power of 30W, the unit boasts a cycle life of over 600 charge-discharge cycles.
3. Compact and Slimline Design:
Measuring 105 × 105 × 27.5 mm with a net weight of 0.302 kg, its square, slim, and lightweight profile allows for easy placement—whether positioned next to equipment, inside a network cabinet, or mounted directly onto a wall.
4. Intelligent Cooling + Removable Battery for Hassle-Free Maintenance:
Equipped with a ventilated cooling structure, a removable battery pack, and rear-mounted wall-hanging slots, this unit serves as a reliable, long-term backup power solution for devices such as routers, optical modems, and security cameras.


Product Detail

Downloads

https://www.wgpups.com/wgp-ethrx-p6-poe-ups-30w-output-usb-5v-9v-12v-24v-or-48v-dc-poe-mini-ups-for-wifi-router-product/
Model WGP Ethrx P6
Battery Type 21700 li-ion
Input Voltage AC 110-240V
Output Power (Max.) 30W
Output Ports DC 1 DC 2 USB POE(Freely switch)
Output Voltage DC 12V DC 9V USB 5V POE 24V/48V
Output Voltage & Current DC 12V  2.5A DC 9V  1A USB 5V 2A POE 24V 0.5A /48V 0.16A
Output Power 30W 9W 10W 12W/7.68W
Battery Capacity & QTY. 8800mAh(4400mAh*2)
Size Information 105 x 105 x 27.5mm
Net Weight (kg) 0.302kg
Packing List Mini Ups*1+Dc Cable *1+AC Cable*1+Instruction Manual *1+Qualified Certificate*1
*Product specifications are subject to change without notice.

Multi-Output Power & Flexible Connectivity:
WGP Ethrx P6 POE Mini UPS supports 9V/12V DC, USB, and selectable 24V/48V PoE inputs and outputs, providing versatile backup power for routers, IP cameras, and PoE devices.

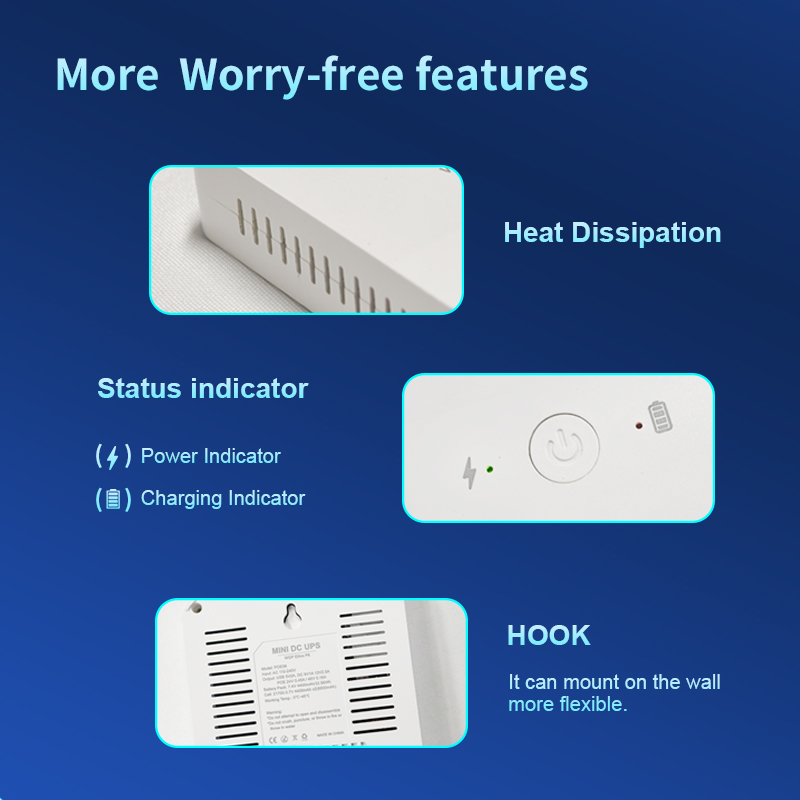

Compact Design & Convenient Installation:
With a compact 105 × 105 × 27.5mm design, the POE06 features power and charging indicators, ventilation slots, organized ports, and a built-in mounting hook for easy installation and efficient heat dissipation.

https://www.wgpups.com/wgp-ethrx-p6-poe-ups-30w-output-usb-5v-9v-12v-24v-or-48v-dc-poe-mini-ups-for-wifi-router-product/

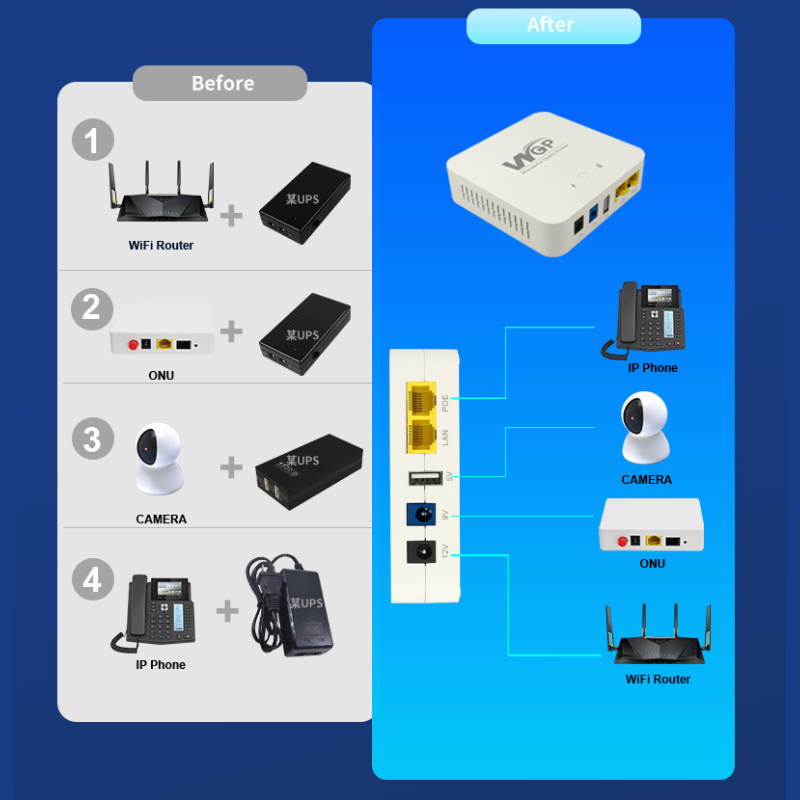

Flexible Power Solution for Network Applications:

Instead of purchasing separate UPS units for each device, one WGP Ethrx P6 Mini UPS provides centralized backup power for multiple devices through its DC, USB and PoE output ports. With flexible voltage options and a compact design, it is an ideal backup power solution for WiFi routers, ONUs, IP phones and security cameras in home networks, small offices, ISP networks and telecommunications applications.

https://www.wgpups.com/wgp-ethrx-p6-poe-ups-30w-output-usb-5v-9v-12v-24v-or-48v-dc-poe-mini-ups-for-wifi-router-product/

Multi-Output Mini UPS for Multiple Devices:
The WGP Ethrx P6 Multi-Port Mini UPS supports DC 9V/12V, USB 5V and switchable 24V/48V PoE outputs, providing flexible backup power for WiFi routers, security cameras, attendance machines and ONUs. Its multi-port design integrates multiple output options into one compact UPS, reducing the need for separate backup power supplies.

https://www.wgpups.com/wgp-ethrx-p6-poe-ups-30w-output-usb-5v-9v-12v-24v-or-48v-dc-poe-mini-ups-for-wifi-router-product/
