WGP Ethrx P5 POE Mini Ups USB 5V DC 9V 12V POE 24V/48V MINI UPS for CPE wifi router IP Phone

Type:WGP Ethrx P5

Product Features:

WGP Ethrx P5 | 30W High Power | QC3.0 Fast Charging | 10400mAh High Capacity

1. 30W High Power + QC3.0 Fast Charging:
Maximum output power of 30W, USB supports QC3.0, providing fast power to high-power devices and mobile phones.

2. Independent Multi-Voltage Output:
Selectable PoE output (24V or 48V), and independent USB 5V DC 9V/12V outputs, allowing simultaneous power supply to multiple devices without interference.

3. 10400mAh High-Capacity Battery for Long-Lasting Battery Life:
Built-in 4x2600mAh 18650 battery cells, providing strong battery life and supporting long-term backup power operation.

4. High Compatibility, Covering 98% of Network Devices:
Widely compatible with mainstream network and monitoring devices such as GPON, ONT, routers, IP Phone and cameras.

5. Operating Status Indicator, Slim Design:
Clear LED display of operating status, body only 26mm thick, flexible installation, saving space.

Send email to us

Product Detail

Downloads

Product Display

https://www.wgpups.com/wgp-ethrx-p5-30w-selectable-poe-ups-24v48v-with-qc3-0-10400mah-5v-9v-12v-mini-ups-for-ont-wifi-router-cameras-product/

Specification

Model		WGP Ethrx P5
Battery Type		21700 li-ion
Input Voltage		AC 100-240V
Output Power (Max.)		30W
Output Ports		DC 1	DC 2	USB	POE(Freely switch)
Output Voltage		DC 12V	DC 9V	USB 5V	POE 24V/48V
Output Voltage & Current		DC 12V 2A	DC 9V 2A	USB 5V 2.5A	POE 24V 1.25A /48V 0.625A
Output Power		24W	18W	12.5W	30W
Battery Capacity & QTY.	Basic	10400mAh（2600mAh*4）
	Pro	20800mAh（2600mAh*8）
Size Information		195 x 115 x 26mm
Net Weight (kg)		0.62kg
*Product specifications are subject to change without notice.

Product Details

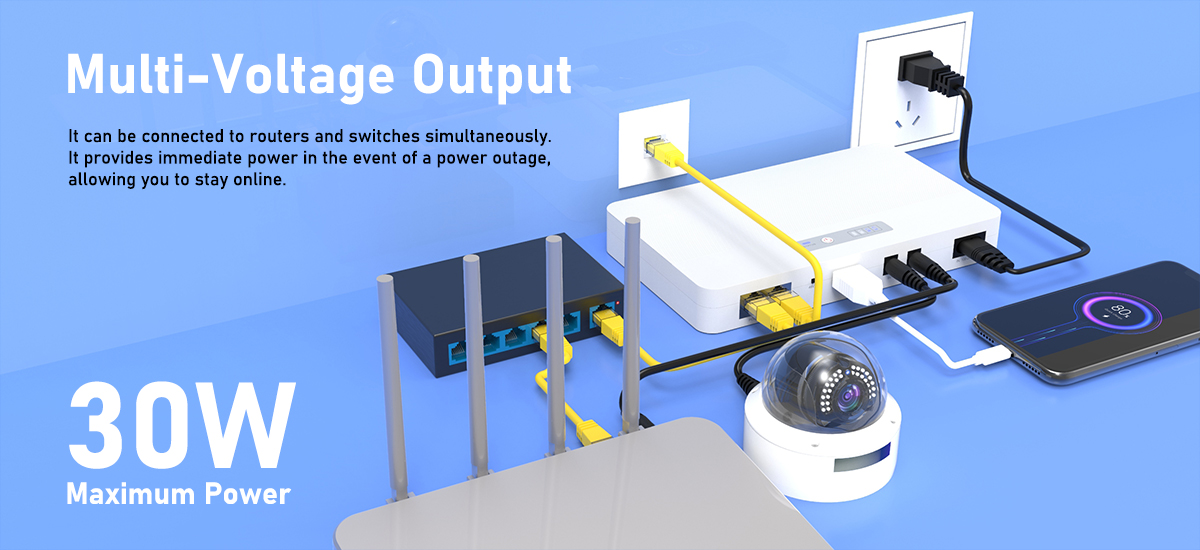

POE05 can be connected to two devices, CPE+wifi router, at the same time, because it has DC 5V 9V 12V POE 24V48V multi-output ports. POE devices can be powered by any other voltage devices.

POE05 has a USB QC3.0 fast charging output port, which can quickly provide power to your 5V devices. When the power is out, the fast charging can use up the power faster, especially for mobile phones.

The advantage of POE05 is also gigawatt network transmission. When the gigawatt CPE is connected to the UPS, it can transmit gigawatts to power the router and the network, which is convenient and fast to use.
